Tile, Masonry and Slab Saw

Advanteges:

High cutting capacity: the blade (suitable for all types of material to be cut) is driven lengthwise by the aluminium carriage with special guide, also made of aluminium - Gliding on 8 technopolymer wheels supported by 16 radial bearings - Movement by direct manual action - Blade positioning versatility: cuts (90°) vertically to the support surface or cuts in tilted position between 90° and 45° (depth adjustment is maintained in all positions) - Elimination of the cut surface splintering effect (glossy, enameled, glazed) thanks to the blade penetrating from the top down - Max. cutting height 55 mm, which can be performed in two passes by positioning the blade vertically (43 mm with just one pass in a 90° position) - Cutting positioning at 45° in just 10 sec. without the help of any tool - Electrical system protected from accidental starting and overload - Direct motor power transmission to the blade - Continuous flow of water to the cutting blade by an electric pump and adjusted by a special valve in order to provide correct cooling and an optimum cut - All parts in direct contact with water are made of anodised or diecast extruded aluminium, treated with antioxidant process for total protection from corrosion - Great sliding and cutting precision: gliding components of the cutting head with wheels mounted on sealed ball bearings - Maximum reliability and sturdiness thanks to the cutting carriage made of die-cast aluminium and the sliding bar of extruded aluminium for reduced maintenance and great precision - Maximum compactness and ease of transport thanks to the tray handles and a weight of just 26 kg - Side cutting surface optional to extend cutting 240 mm: easily mounted, it is supported by a bracket bolted onto the stand.

Standard Equipment

• Single-phase 230V/50Hz electric motor, 0.7 kW
• IP 55 switch
• IP 67 plug
• Cutting guide
• Blade Ø 200 mm
• Protractor with large cutting surface
• Anodised extruded aluminium cutting surface 240 mm
• Shatter-resistant plastic tray to contain and recover water
• Stand

Optional accessories

• Side cutting surface

Advantages:

High cutting capacity: max. cutting length 1000 mm with 66-mm depth in just one pass (105 mm with two passes) with longitudinal cut, max. length 1100 mm with cutting system with plunging blade - Gliding cutting head, adjustable in height and reclining to 45° - Cable guide chain for protection and safe use (does not weigh down sliding of the carriage) - Maximum precision thanks to the laser pointer inserted standard inside the structure - Continuous flow of water to the cutting blade by an electric pump and adjusted by special valve to provide correct cooling and an optimum cut in observance of the safety regulations - All parts in direct contact with water are made of die-cast or anodised extruded aluminium treated with antioxidant process for total protection from corrosion - Great sliding and cutting precision: sliding components of the cutting head with wheels mounted on sealed ball bearings - Maximum reliability and sturdiness: cutting surface made of anodised extruded aluminium, cutting carriage of die-cast aluminium and sliding bar of extruded aluminium section bar for less maintenance and great precision - Maximum compactness and ease of transport thanks to the tray handles - Protractor with large support surface - Maximum stability and also ease of use and movement thanks to the stand with a sturdy structure made of painted steel pipe, legs that fold up and two rubber wheels - 1 or 2 optional side cutting surfaces that can be put on the right or left of the machine as solid support bases for cutting large tiles (supported by special brackets).

Standard Equipment

• Single-phase 230V/50Hz electric motor, 1.1 kW
• IP 55 switch
• IP 67 plug
• Laser pointer
• Cutting guide
• Blade Ø 250 mm - continuous rim
• Protractor with large support surface
• Cutting surface made of anodised extruded aluminium
• Shatter-resistant plastic tray to contain and recover water
• Stand with two rubber wheels

Optional Accessories

• Side cutting surfaces
• Blade Ø 250 mm for ceramic - continuous rim
• Blade Ø 250 mm for stoneware - continuous crown
• Blade Ø 250 mm for bricks/tiles - sectors - s. laser
• Blade Ø 250 mm for granite - sectors - s. laser
• Blade Ø 250 mm for cement/roof tiles/sandstone - sectors - s. laser

Advantages:

High cutting quality:

• cut alignment by means of an arm adjustment and locking system, mainly constituted by a special, purposely designed pivot (patent pending);
• wooden cutting surface allowing for better friction of the material to be cut;

Ergonomic and user-friendly:

• transportable by a single person;
• easy to remove arm guard for speedy maintenance of the electric panel;
• rapid blade replacement through locking system on the drive shaft;
• blade guard easily dismountable by means of two captive knobs;
• water inlet quick release coupling.

Upmost operator safety:

• folding legs with snap opening and closing;
• carriage anti-overturning system.

Easy loading and handling at the building site:

• folding legs;
• wheels for manual handling and loading on vehicles.

Sturdiness and durability:

• shatter and wear resistant plastic tray to contain and recover water, with settling compartments;
• submersible pump protected against deposits;
• structural rigidity for enhanced stability;
• wear resistant stainless steel carriage guides;
• generously-sized tray plug.

Applications

The Smart Cut 350 14"saw is designed for cutting bricks, stone materials and stones. The tilting cutting head allows for higher speed in performing special cuts like grooves, profiles and cut-outs.

Standard Equipment

• Single-phase electric motor: 230V/60Hz 2.2 kW or 115V/60Hz 1.5 kW
• IP55 plug
• Diamond blade Ø 350 mm for bricks/roof tiles/blocks - segments
• Shatter-resistant plastic tray to contain and recover water
• Transport handle and wheels for manual handling and loading
• Folding legs
• Arm guard
• Exclusive IMER arm adjustment and locking system
• Wooden cutting surface
• Carriage anti-overturning system
• Large protractor

Optional Accessories:

• Support for cutting at 45°

Applications

For cutting large materials like structural stone blocks, cement blocks and stone facing. The sturdy structure of the Masonry 750 and the powerful motor ensure excellent efficiency. The single-phase version is a particularly efficient and versatile machine, for working also in places where there is no 400V/50Hz power supply. The combined cutting action between the downward movement of the cutting head and the horizontal movement of the carriage allows higher speed and accuracy in cutting on large materials or on grooves and profiles. Starting in two steps on the three-phase version (start and run) ensures reliability and durability. The machine is fitted with an emergency button with reset.

Standard Equipment

• Three-phase 400V/50Hz (5.5 kW) or single-phase 230V/50Hz (2.2 kW) electric motor
• IP 67 plug
• Shatter-resistant plastic tray to contain and recover water
• Guide rails for forklift and hooking points for lifting
• 4 Wheels (2 revolving with brake)
• Cutting height adjustment knob
• Carriage clamp for transport
• Carriage pushing handle
• Side protections

Optional accessories and recommended blades

• Protractor
• Blade lateral guards
• Additional table
• 45° meter guide
• Diamond blade Ø 750 mm bricks / blocks segm.
• Diamond blade Ø 750 mm Poroton / stone segm.

Advantages:

High cutting capacity: the blade (suitable for all types of material to be cut) is driven lengthwise by the aluminium carriage with special guide, also made of aluminium - Gliding on 8 technopolymer wheels supported by 16 radial bearings - Movement by direct manual action - Blade positioning versatility: cuts vertically (90°) to the support surface or cuts in tilted position between 90° and 45° (depth adjustment is maintained in all positions) - Elimination of the cut surface splintering effect (glossy, enameled, glazed) thanks to the blade penetrating from the top down (the blade cuts first the enameled part and then the support material) - Cutting length max. 785 mm (permits diagonal cut of a tile of 500 mm on the side) - Max. cutting height 105 mm that can be carried out in two passes, thanks to the possibility of positioning the blade vertically (66 mm with just one pass in a 90° position) - Positioning the cut at 45° in just 10 sec. without the help of any tool - Electrical system protected from accidental starting and overload - Direct transmission of the motor power to the blade - Continuous flow of water to the cutting blade by an electric pump and adjusted by a special valve in order to provide correct cooling and an optimum cut - All parts in direct contact with water are made of anodised or die-cast extruded aluminium, treated with antioxidant process for total protection from corrosion - Great sliding and cutting precision: sliding components of the cutting head with wheels mounted on sealed ball bearings - Maximum reliability and sturdiness: cutting surface made of anodised extruded aluminium, cutting carriage of die-cast aluminium and sliding bar of extruded aluminium for less maintenance and great precision - Maximum compactness and ease of transport thanks to the tray handles - Protractor with large support surface: both large pieces (up to 600 mm) and tiny pieces (up to 10 mm) can be positioned - Optional side cutting surface for extending the cut by 240 mm: easy to apply, it is supported by a bracket screwed onto the stand.

Standard Equipment

• Single-phase 230V/50Hz electric motor, 1.1 kW
• IP 55 switch
• IP 67 plug
• Cutting guide
• Blade Ø 250 mm
• Protractor with large cutting surface
• Anodised extruded aluminium cutting surface 240 mm
• Shatter-resistant plastic tray to contain and recover water
• Stand

Optional accessories and recommended blades

• Side cutting surface
• Blade Ø 250 mm for ceramic - continuous rim
• Blade Ø 250 mm for stoneware - continuous crown
• Blade Ø 250 mm for bricks/tiles - sectors - s. laser
• Blade Ø 250 mm for granite - sectors - s. laser
• Blade Ø 250 mm for cement/roof tiles/sandstone - sectors - s. laser

Advantages:

High cutting quality:

• 5/10 tolerance for 1000 mm length;
• Cut alignment by means of 3 adjustment points (travel bar, arms and frame rebate) to keep cutting accuracy unchanged;
• Setting of cutting height by means of a simple selector;
• Cutting head locking system at 90° or 45° for utmost stability and high cutting accuracy;
• High cutting depth: max. 250 mm.

User-friendly and easy to use:

• Sound absorption panel inside the blade guard to reduce noise;
• Blade guard easy dismountable by means of two captive knobs;
• Rapid blade replacement through locking system on the drive shaft;
• Water inlet quick release coupling;
• Transportable by a single person.

Sturdiness and durability:

• Travel bar made of extruded aluminium with special profile (no maintenance is required - high resistance against load deformations and torsions);
• 1390 x 696 mm cutting surface in stainless steel;
• Shatter-resistant plastic tray to contain and recover water, with settling compartments;
• Submersible pump protected against deposits;
• Generously-sized tray plug.

Maximum safety for the operator:

• Fast travel bar locking system;
• Folding legs;
• Handles and wheels for manual handling and loading on vehicles.

Top efficiency:

• Special motor with power rating and torque 20% higher than similar motors available on the market;
• Motor power is entirely transmitted to blade through the high resistance belt, which is adjustment/maintenance free.

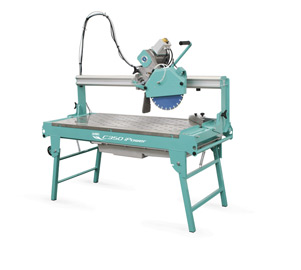

Applications

High power saw for cutting marble, bricks and stone. It is designed both for building sites and for the installer. It allows installer to cut tiles up to 1200 mm length with plunge cutting. The C350iPower can be also used in building sites to cut blocks up to 250 mm height with two passes. The tilting cutting head allows for high speed in performing special cuts (45° bevel cut in only 5 min. - no optional cutting accessories are required).

Standard Equipment

• Single-phase 230V/50Hz electric motor 2.5 kW
• IP 55 circuit breaker with no-volt coil
• IP 55 circuit breaker with no-volt coil
• IP 67 plug
• Laser Pointer
• Blade Ø 350 mm for bricks/roof tiles/blocks - sectors
• Large protractor
• Cutting surface in stainless steel
• Shatter - resistant plastic tray to contain and recover water
• Handles and wheels for manual handling and loading on vehicles
• Folding legs

Recommended blades

• Blade Ø 350 mm for tiles - continuous rim
• Blade Ø 350 mm SUPER for hard gres tiles - continuous rim
• Bade Ø 350 mm for bricks/roof tiles/blocks - sectors
• Blade Ø 350 mm for granite/stone - sectors s. laser

Advantages:

High cutting quality:

• cut alignment by means of an arm adjustment and locking system, mainly constituted by a special, purposely designed pivot (patent pending);
• setting of cutting height for the Ø 350 mm or Ø 400 mm blade by means of a simple selector;
• wooden cutting surface allowing for better friction of the material to be cut;
• high cutting depth, max. 250 mm.

Ergonomic and user-friendly:

• transportable by a single person;
• easy to remove arm guard for speedy maintenance of the electric panel;
• rapid blade replacement through locking system on the drive shaft;
• blade guard easily dismountable by means of two captive knobs;
• water inlet quick release coupling.

Cutting flexibility:

• set up for blades Ø 350 or 400 mm.

Upmost operator safety:

• folding legs with snap opening and closing;
• carriage anti-overturning system.

Top efficiency:

• special motor with power rating and torque 20% higher than similar motors available on the market.

Easy loading and handling at the building site:

• folding legs;
• wheels for manual handling and loading on vehicles.

Sturdiness and durability:

• shatter and wear resistant plastic tray to contain and recover water, with settling compartments;
• submersible pump protected against deposits;
• structural rigidity for enhanced stability;
• wear resistant stainless steel carriage guides;
• generously-sized tray plug.

Standard Equipment

• 230V/50Hz direct drive electric motor, 2.2 kW
• IP67 plug
• Blade Ø 350 mm, universal-sectors
• Shatter-resistant plastic tray to contain and recover water
• Transport handle and wheels for manual handling and loading
• Folding legs
• Arm guard
• Exclusive IMER arm adjustment and locking system
• Wooden cutting surface
• Carriage anti-overturning system
• Large protractor

Optional accessories:

• Support for cutting at 45°

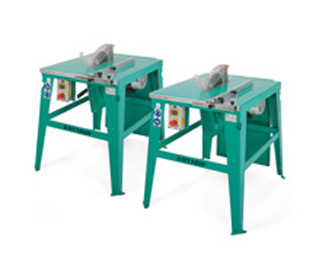

Advantages:

High motor power: motor power greater than the market average, both single-phase (2.5 kW) and three-phase (3 kW) - Transmission with two trapezoidal belts to reach a max. 110-mm cutting height without transferring motor vibrations to the blade - Conformity to the EN 1870-1 standard - Adjustable cutting height (H110VR) - Large cutting table and additional rear table (for long pieces), which can be snapped on without the help of any support - Split pin for locking the blade shaft to prevent accidental motor starting while replacing the blade - Maximum safety and visibility while working thanks to the mobile transparent polycarbonate blade guard to prevent accidental contact - Easy movement thanks to the hooking points for hoisting.

Standard Equipment

• Single-phase 230V/50Hz (2.5 kW) or three-phase 400V/Hz (3 kW) electric motor
• IP55 switch
• IP 67 plug
• Emergency push button
• Adjustable cutting height (H110VR)
• Steel Widia blade Ø 315 mm x 3.2 Z= 28 with limiting device
• Protractor
• Piece pusher
• Additional table
• Hooking points for hoisting

Optional accessories:

• Wheel kit
