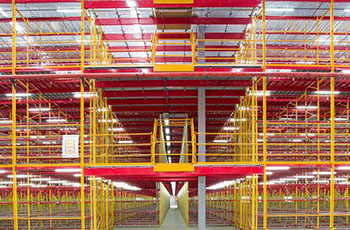

Godrej Column based Mezzanine floor system is a light weight steel flooring system provided at a suitable height from ground. Vertical columns which are grouted support the grid created by the horizontal beams on which decking panels are assembled.
The system could be configured to suit the layout of the room, taking into account pillar positions, door positions etc. The solution can also be designed for varying load capacities ranging from 500 kg/sqm to 1500 kg/sqm UDL.
The system consists of optimum sized modules and can be suited to match the total area on which the Mezzanine floor is required to be provided. The module size is designed to enable maximum area utilization under the Mezzanine floor. Column based Mezzanine system could be provided in standard heights ranging from 2.4m to 3m. Beyond 3m height, it has to be designed taking care of the additional stability requirements. Both single tier and two-tier systems can be provided depending on the height available which could almost double or triple your floor space.
Warehouses, other industrial and commercial establishments where the useful area of the premises can be multiplied for use as:

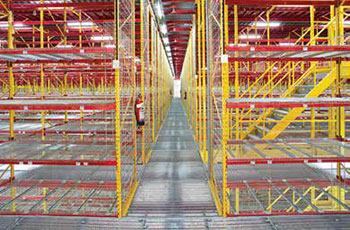

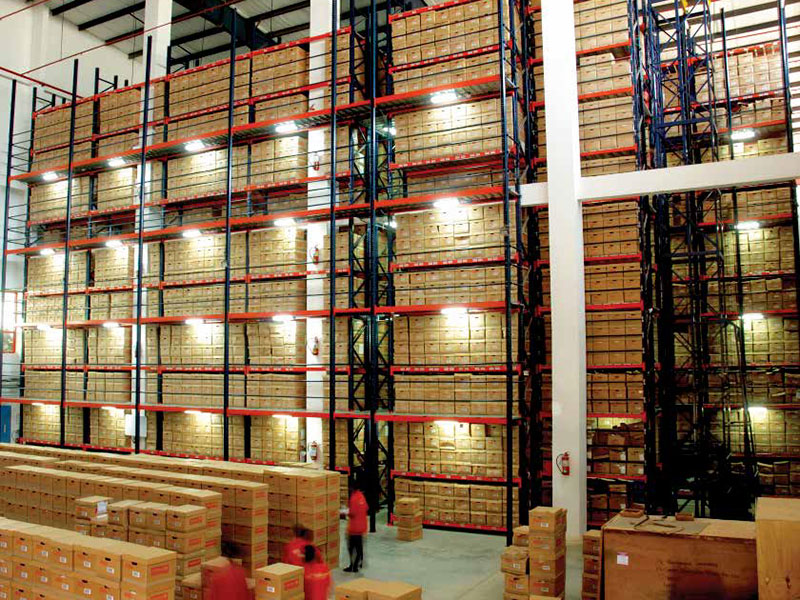

Frame based Mezzanine floors, also known as “rack supported mezzanines” are versatile systems which serve dual purpose of shelving space on ground and flooring space on top.
Besides in a frame based mezzanine floor, you have the flexibility of defining your storage and aisle spaces.
Frame based mezzanine floor system could be configured to suit the layout of the room, taking into account pillar positions, door positions etc. This system can be offered for various tiers and up to load bearing capacities of 1000 Kgs /Sqm UDL.
Frame based mezzanines can be offered with following flooring options:
Warehouses, other industrial and commercial establishments where the useful area of the premises can be multiplied for use as:
