Diesel Forklift

H 18 D – H 20 D

1.8 Ton – 2.0 Ton

Series: 350-04

Capacity: 1.8 Ton – 2.0 Ton

Type: Hydrostatic Drive

More Info

Main Feature

Original Linde hydrostatic drive

--  Responsive, smooth and precise driving
--  No clutch, differential or drum brakes
--  Hydrostatic drive system, well proven in
--  Heavy duty application
--  Low maintenance costs and long life

Optional Equipment

  • Other lift height with Standard/Duplex/Triplex mast
  • Sideshifter; load backrest;
  • One or two additional hydraulic circuits available for all
  • mast type
  • Various nonstandard fork lengths
  • Working lamp
  • Non marking tyres
  • Special paint
  • Particulate filter (Diesel engines)
  • Air pre-filter

Standard Equipment

  • Adjustable seat with sea-belt
  • Linde twin pedal system and central control lever
  • Combination intake hydraulic oil filter
  • Suction-type intake air filter
  • Power steering
  • Combi-instrument on indicator incorporating operating
  • hour meter and control lights for all important truck
  • functions.
  • Pneumatic tyres
  • Standard lift mast: Lift height h3=3,250mm
  • Fork arms L=1,000mm
  • Standard fork carriage1040mm
  • Ergonomic console
  • Adjustable steering column
  • Overhead guard 2,070mm high (for standard container)
  • Standard lighting
  • Reverse beeper

HT 25 D – HT 30 D

2.5 Ton – 3.0 Ton

Series: 1218

Capacity: 2.5 Ton – 3.0 Ton

Type: Torque Converter

More Info

Standard Equipment

  • PVC seat
  • Combination dry-type intake air filter
  • Linde hydraulic steering
  • Pneumatic tyres
  • Standard lift mast: Lift height h3=3,050mm
  • Fork arms l=1000mm
  • Standard fork carriage
  • Multi-functional display
  • Adjustable steering column
  • Standard container overhead guard
  • Truck lighting
  • Protected rear-lighting (height=2,180mm)
  • Fuel intake water seperator
  • Pre-heating relay(for winter quick-start)

Optional Equipment

  • Other lift height with Standard/Duplex/Triplex mast
  • Side shifter
  • Load backrest
  • One or two additional hydraulic for all mast type
  • Various nonstandard fork lengths
  • Additional working lamp
  • Twin drive wheel; SE tyres; Non marking tyres
  • Special paint

H 25 D – H 50 D

2.5 Ton – 5.0 Ton

Series: 352

Capacity: 2.5 Ton – 5.0 Ton

Type: Hydrostatic Drive

More Info

Standard Equipment

  • Adjustable PVC seat
  • Linde twin-pedal drive and central control lever
  • Combination dry-type intake air filter
  • Suction-type intake air filter
  • Power steering
  • Combi-instrument on dashboard incorporating operating
  • hour meter and control lights for all important truck
  • functions.
  • Super elastic tyres
  • Fork arms l=1000mm
  • Standard fork carriage
  • Ergonomic console
  • Adjustable steering column
  • Truck lighting China version

Optional Equipment

  • Other lift height with Standard/Duplex/Triplex mast
  • Integrated side-shifter
  • Load backrest
  • One or two additional hydraulic circuits available for all
  • mast type
  • Working lamp
  • Special paint
  • Air pre-filter

H40 D – H 50 D

4.0 Ton – 5.0 Ton

Series: 394-02

Capacity: 4.0 Ton – 5.0 Ton

Type: Hydrostatic Drive

More Info

Main Features:

Original Linde hydrostatic drive

  • Sensitive, smooth, and precise driving
  • Variable displacement pump for bestenergy consumption
  • No clutch, no differential, and no drum brakes thanks to hydrostatic direct drive
  • Robust drive even in extreme environments

Standard Equipment

  • Intercooled and turbo charged engine with common rail technique
    • in the EC/USA-version with diesel particle filter and catalyst
    • in the RoW- and 36 kW version with additional main silencer
  • Responsive and precise Linde twin pedal control
  • Linde Load Control for relaxed and accurate control of all mast functions
  • Hydraulic suspension seat
  • Adjustable steering column angle
  • Hydrostatic power steering
  • Glare-free head-up instrument display; control lights for all major functions
  • Ample storage space
  • High-efficiency hydraulic oil filter
  • SE tyres
  • Standard mast, lift 3100 mm (H40), 3000 mm (H45/50), 3200 mm (H50/600)
  • Fork carriage width 1350 mm
  • Fork length 1000mm(H40-H50), 1200mm (H50/600)
  • Dust proofed starter
  • Hydraulic control valve for single addition hydraulic circuit

Optional Equipment

  • Single drive pedal with direction selector on armrest
  • Overhead guard can be upgrated to full cabine with roof, front and rear screens and doors (also available with tinted glass)
  • Wiper-washers for front, rear and roof screens
  • Further seats with additional comfort and adjustments
  • Cab heater with integrated pollen filter
  • Air Conditioning
  • Radio with CD-player and speakers
  • Sun screens, clipboard, interior lighting, height adjustable steering column
  • Standard masts from 3,000 mm to 5,400 mm lift
  • Duplex masts (full free lift) from 2,700 mm to 4,130 mm lift
  • Triplex masts (full free lift) from 4,525 mm to 6,315 mm lift
  • Integrated sideshift
  • Integrated fork positioner
  • Load backrest
  • One or two auxiliary hydraulic circuits for all mast types
  • Alternative fork lengths
  • Tilt cylinder- and roof protection
  • Truck lighting, working lamps
  • Audible reversing alarm, flasher and strobe beacons
  • Mirrors
  • Linde original Blue Spot
  • Camera and colour monitor
  • Road traffic specifications
  • Air precleaner
  • Oilbath air precleaner
  • Unregulated catalyst (Diesel)
  • Linde Forklift Data Management
  • Custom paintwork

H50 D – H 80 D

5.0 Ton – 8.0 Ton

Series: 396

Capacity: 5.0 Ton – 8.0 Ton

Type: Hydrostatic Drive

More Info

Main Features:

Original Linde hydrostatic drive

  • Sensitive, smooth, and precise driving
  • Variable displacement pump for bestenergy consumption
  • No clutch, no differential, and no drum brakes thanks to hydrostatic direct drive
  • Robust drive even in extreme environments

Standard Equipment

  • Linde twin drive pedals to control forward/reverse travel and braking
  • Original Linde Load Control integrated in armrest
  • Hydraulic suspended comfort-class seat with extensive range of adjustment
  • Hydrostatic steering, kickback free
  • Anti-glare display with fuel gauge, clock, hour meter, service and regeneration information
  • LEPS (Linde-Engine-Protection-System) as monitoring of motor oil pressure and level, temperature and level of the cooling water and temperature of the hydraulic oil
  • Plenty of storage space for writing utensils, beverage cans...
  • Air intake filter with integrated cyclone separator
  • High-performance hydraulic filter concept, guarantees maxi¬mum oil purity and extends life of all hydraulic components
  • LPG truck fitted with a three-way catalytic converter
  • Variable displacement pumps for driving and lifting to reduce fuel consumption
  • Interior light, 12V socket
  • Superelastictyres

Optional Equipment

  • Single drive pedal with direction selector on armrest
  • Overhead guard can be upgrated to full cabine with roof, front and rear screens and doors (also available with tinted glass)
  • Wiper-washers for front, rear and roof screens
  • Further seats with additional comfort and adjustments
  • Cab heater with integrated pollen filter
  • Air Conditioning
  • Radio
  • Sun screens, clipboard, interior lighting, height adjustable steering column
  • Standard masts from 3,350 mm to 8,850 mm lift
  • Triplex masts (full free lift) from 4,770 mm to 9,755 mm lift
  • One, two or three additional hydraulic circuits for all mast types
  • Alternative fork lengths
  • Truck lighting, working lamps
  • Audible reversing alarm, flasher and strobe beacons
  • Mirrors
  • Linde original Blue Spot
  • Camera and colour monitor
  • Road traffic specifications
  • Air precleaner
  • Oilbath air precleaner
  • Hydraulic accumulator
  • Engine shut off 30 s to 5 min
  • Foundry version
  • Swivelling seat 17°
  • Linde Forklift Data Management
  • Custom paintwork

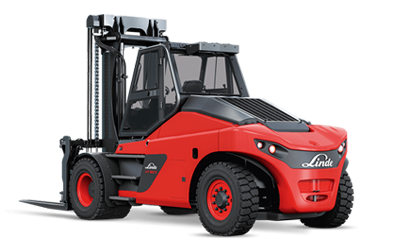

HT100 Ds – HT 180 Ds

10 Ton – 18 Ton

Series: 1411

Capacity: 10 Ton – 18 Ton

Type: Torque Converter

More Info

Main Features:

Standard Equipment

  • Glazed Cabin, Doors & Heater
  • Adjustable steer column
  • Orange seat belt, with switch
  • USB charging port
  • Panzar glass " Clear Sky View "
  • External mirrors
  • Abundant storage space
  • Chassis mounted hourmeter
  • 12V socket in cabin
  • Absent driver shut off switch
  • Internal rear-view mirror
  • Lockable, underseat storage box
  • Single drive pedal with direction selector in armrest
  • Hydraulic-suspension comfort-class seat
  • Individual levers – fork spread and sideshift
  • Individual levers _ lift and tilt
  • Linde Load Control for low-effort precision of all mast functions
  • Standard armrest
  • 4.3" High resolution colour display
  • Powered " forward tilting cabin "
  • Audible warning reverse alarm
  • Air intake filter
  • Engine MTU 4R1000 T4F at 129 kW or 150 kW (depending on the truck model)
  • Perkins 1106D E70TA Stage T3 at 129kW
  • Engine intake air cleaner with integral safety element
  • ZF 3 WG 161/ZF 3 WG 131 ERGOPOWER SERIES (depending on the truck model)
  • Kessler D81 drive axle
  • Variable displacement piston pump
  • Digital, proportional valve with integrated safety monitoring
  • High-performance hydraulic filter preserving max. purity of oil for long life of all hydraulic components
  • Integrated forks and rollers
  • Fork carriage, width b3=2545 mm
  • Hydraulic side-shift and fork positioner
  • Trelleborg or similar premium tyres
  • Standard mast, lift height h3 = 4000 mm
  • Linde Service MonitoringSystem incl. total engine hours, idle time, static working hours and mobile working hours

Optional Equipment

  • Tinted glass
  • Heated glass
  • Panoramic internal mirrors
  • Buddy seat
  • 10o or 17 o rotating driver's seat
  • DIN A4 pad – Linde
  • Cup holder
  • Climate Control
  • Sun blinds Linde; roof / front
  • Cabin pre-heater
  • Rear view and/ or front view camera system and screen
  • 270 o camera option
  • Seat incorporating air suspension with compressor
  • Gated lever – additional hydraulic service
  • External step lighting
  • Working lights + LED / Xenon
  • Truck lights
  • Beacon lamps
  • 7" Colour display with LED background illumination
  • Premium armrest with menu driving armrest mounted" rotarypushbutton knob" driving 7" screen
  • Remote (Modem) diagnostics
  • Mast height slowdown / speed limit
  • Connect Access Control
  • Digital audio broadcasting radio with MP3, USB Bluetooth and speakers
  • Engine MTU 4R 1000 T4 available with 150 kW power ratings
  • Truck speed limiting based on digital input (switch inside the cabin
  • Cyclonic air intake filter
  • Single and double auxiliary hydraulics for all mast types
  • Linde Load Weight Indicator (+/- 100 kg)
  • Mast accumulator
  • Integral fork positioner
  • Michelin and Simex E4
  • Standard masts, 2430 – 9500 mm lift height (model specific, refer to mast table)
  • Duplex masts (full free lift), 2580 – 7000 mm lift height (model specific)
  • Triplex masts (full free lift), 4000 – 10000 mm lift height (model specific)
  • Custom paintwork
