Hoists

Advantages:

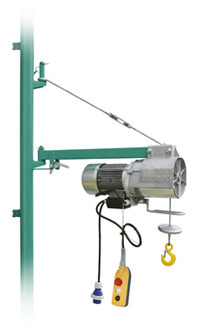

Self-braking motor with magnetic device (ET 200N) or brake rectifier (ES 150) - The motor gearbox unit with helical-toothed gears in oil bath allows maximum silence and long life of the machine - Electric cables with neoprene covering to ensure maximum resistance to dust, atmospheric agents and low temperatures - Drum with two fixed wire rope coils, placed transverse to the mounting bracket to improve sliding and eliminate the accumulation of rope on one side only; guarantee against self-energising: descent speed always remains within permitted limits.

Standard Equipment

• Trolley available for use with a gantry
• Work positioning lever
• Upper limit safety device
• IP67 plug
• Direct control with 3-pushbutton IP65 pendant control 1 m

Applications

It is ideal for lifting loads up to great heights because it has a high lifting speed (30 m/min.). Maximum capacity remains unchanged for the entire arm extension so bulky materials can be lifted without risk of striking against structures.

Standard equipment

• Work positioning lever
• IP67 plug
• Trolley available for use with a gantry
• Upper limit safety device
• Direct control with 3-pushbutton IP65 pendant control 1.5 m
• Self-braking motor with magnetic device
• Bracket can be extended up to 1120 m

Advantages:

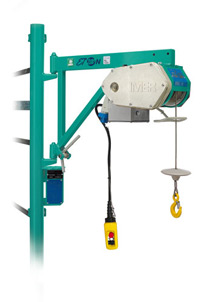

Self-braking motor with magnetic device (ETR 200N) or brake rectifier (ET 150V) - Bracket can be extended up to 1120 mm - Maximum capacity unchanged for the entire extension so bulky materials can be lifted without the risk of striking against the structures - Connection always reliable and safe with locking hook equipped with block and wedge for ET 150V - Electric cables with neoprene covering to ensure maximum resistance to dust, atmospheric agents and low temperatures - Drum with two fixed wire rope coils, placed transverse to the mounting bracket to improve sliding and eliminate the accumulation of rope on one side only - Guarantee against selfenergising: descent speed always remains within permitted limits.

Standard equipment

• Trolley available for use with a gantry
• Work positioning lever
• Upper limit safety device
• IP67 plug
• Direct control with 3-pushbutton IP65 pendant control 1.5 m
• Direct control with 3-pushbutton IP65 pendant control 1.5 m
• Self-braking motor with magnetic device
• Bracket can be extended up to 1120 m

Applications

The low noise level allows working without causing noise harmful to the operator's health and bothersome to others. TR 225VN has a high lifting speed and can reach high working height

Standard equipment

• Work positioning lever
• Hook with block and wedge (TR 225N)
• IP67 plug
• Trolley available for use with a gantry
• Upper limit safety device
• Direct control with 3-pushbutton IP65 pendant control (TR 225VN)
• Multipin connector for changing the pendant control (TR 225VN)
• Self-barking motor with magnetic device
• Bracket can be extended up to 1120 m

Advantages:

Self-braking motor with magnetic device (Airone 200N) or brake rectifier (Airone 300N) - Noiseless and long machine life, thanks to the motor gearbox with helical-toothed gears in oil bath - Bracket can be extended up to 1100 mm - Maximum capacity unchanged for the entire extension so bulky material can be lifted without the risk of striking the structures.

Standard equipment

• Work positioning lever
• Upper limit safety device
• IP67 plug
• Direct control with 3-button IP65 pushbutton panel 1m
• Prearrangement for all IMER supports (gantry excluded) on Airone 200N

Optional Accessories

• Prop for Airone 300N
• Ballast container for Airone 300N

Applications

The telescopic arm on Pull Up 450 can be extended up to 1118 mm.

Optional Accessories

• Single-phase 115V/60Hz or 230V/60Hz electric motor
• Lifting hook with counterweight
• Prearrangement for use with a gantry
• Upper limit safety device
• Down position control lever
• 24 V command control
• Pendant control with emergency button
• Telescopic frame
• Pivoting frame

Standard equipment

• Scaffold Mount Trolley Track (500 kg)
• Track Trolley (500 kg)

Applications

It ensures maximum reliability and durability. The gearmotor is built with helical-toothed steel gears in oil bath.

Standard equipment

• Single-phase 230V/50Hz electric motor
• IP67 plug
• Frame with 4 aluminium wheels
• Upper limit safety device
• Direct controls with 3-pushbutton 1.5-m pendant control
• Positioning brake
• Self-braking motor with magnetic device
• Pivoting frame

Optional Accessories

• Scaffold Mount Trolley Track (500 kg)
• Track Trolley (500 kg)

Applications

Thanks to their sturdy structure and powerful motor, G 500 and G 1000 are particularly suitable for heavy duty use on site.

Standard equipment

• Single-phase 230V/50Hz electric motor
• IP67 plug
• Frame with 4 aluminium wheels
• Upper limit safety device
• Direct control with 3-pushbutton IP65 1.5-m pendant control
• Positioning brake
• Self-braking motor with magnetic device

Optional Accessories

• Scaffold Mount Trolley Track (500 kg)
• Track Trolley (500 kg)

Applications

It simplifies assembly operations and provides particular technical solutions which differentiate it from traditional hoists. After having put the hoist at the foot of the structure, during use it is sufficient to move the swivelling bracket into the desired position. Versatility and high resistance of the swivelling bracket to atmospheric agents: equipped with quick attachment, adaptors for various types of scaffolds and work positioning lever, it can be also applied at halfstructure using the optional scaffold attachment.

Standard equipment

• Single-phase 230V/50Hz electric motor
• Direct control with 3-pushbutton IP65 5-m pendant control
• Swivelling bracket
• Upper limit safety device
• Self-braking motor with magnetic device

ET 500 N Applications

Double pull hoist with transverse drum. High capacity and extremely versatile. The gearmotor is built with helical-toothed steel gears in oil bath.

ET 500 N Standard equipment

• Single-phase 230V/50Hz electric motor
• Swivel hook with leading block with cast iron pulley
• Double pull rope
• IP67 plug
• Frame with 4 aluminium wheels
• Upper limit safety device
• Direct control with 3-pushbutton 1.5-m pendant control
• Positioning brake
• Self-breaking motor with magnetic device

ET 500 TF/ET 1000 Applications

Thanks to its sturdy structure and powerful motor, ET 1000 is particularly suitable for heavy duty use on site.

ET 500 TF/ET 1000 Standard equipment

• Three-phase 400V/50-60Hz electric motor
• IP67 plug
• Frame with 4 steel wheels
• Upper limit safety device
• Direct control with 3-pushbutton IP65 1.5-m pendant control
• Positioning brake
• Direct control with 3-pushbutton 1.5-m pendant control
• Positioning brake
• Self-braking motor with magnetic device
