The electronically controlled hydraulic suspension active castor wheels provide superb stability and traction when transporting pallet loads with automatic braking on releasing the travel switch and well controllable countercurrent braking. The electromagnetic braking is initiated by the emergency stop button that acts on the drive motor, proportional to the load carried. With an ideal 45° driving position it provides an excellent view of the environment driving in either forward or reverse. Utmost safety in every situation with exceptional stability, especially when cornering.

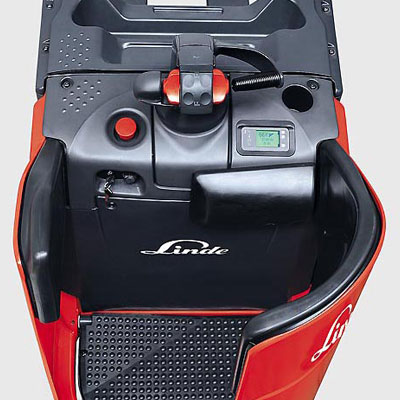

- Ergonomic control handle allows one-hand operation
- Asymmetrical design leaves more room for first-level access
- All main control functions integrated in one handle
- Perfectly matched to 45° driving position
- Digital multifunction display
- Truck access control by unique PIN code or by ignition key
- Storage compartments for wrapping paper, work gloves, writing utensils, etc.
- Electronic management of
- components permitting quick
- and easy diagnosis
- Parameters can be configured by the service technician

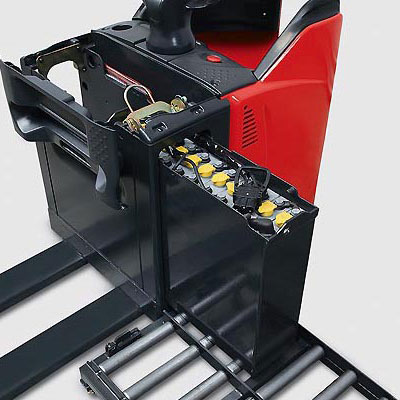

- Vertical battery change as standard
- Optional side battery change left or right
- Wide range of batteries from 250Ah (2PzS) to 620 Ah (5PzS)
- Wide range of standard and wall-mount chargers
- Battery locking system secures battery and eases the battery change
- Powerful, smooth-running motor, 3kW (at 100% performance)
- Gradeability 13%
- No rollback on uphill starting
- Top speed 10 km/h, loaded as unloaded
- Forceful acceleration takes truck to top speed within 5 metres
- Moisture-and dust-proof motor needs no maintenance
- Proportional power-assisted steering, self-centering and effortless to operate
- Adjustable steering (drive wheel) feedback resulting in outstanding stability
- Automatic speed reduction when cornering
- Manoeuvering effort varies depending on the turning angle
