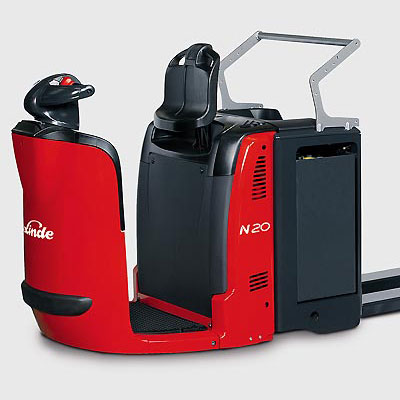

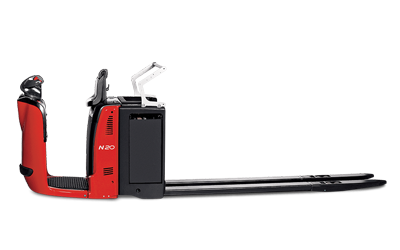

The drive system has four-point contact configuration for maximum stability (N 20). The maximum speed is 10 km/h laden and 12 km/h unladen with automatic regenerative braking as traction butterfly is released to neutral or opposite direction of travel is selected. Electromagnetic braking initiated by the emergency stop button acts on the drive motor, proportional to the load carried. There is also a High-performance option with a five-point contact configuration for optimum stability (N 20 HP/N 24 HP). Electronically controlled, hydraulically suspended active castor wheels automatically select optimum ratio between stability and traction for constant ground contact.

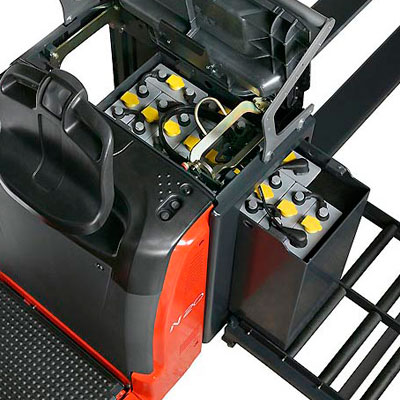

- Vertical battery change as standard, optional side battery change left or right
- Wide range of batteries (low & high) from 270 Ah (3 PzS) to 620 Ah (4 PzS)
- Battery locking system secures battery and assists the battery change

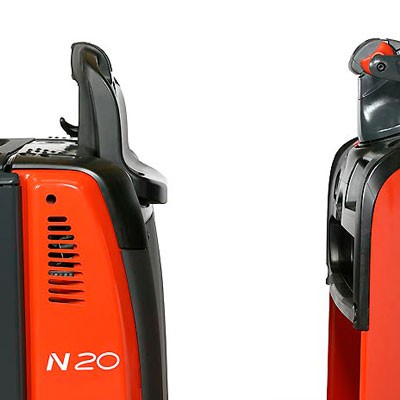

- Superbly functional twin-grip steering controller
- All controls ergonomically grouped on twin grip controller
- Optimum protection for both hands
- Twin-grip design minimises operator‘s arm movements when turning
- CAN bus diagnostic system for faster analysis and shorter service intervals
- Performance parameters can be configured by the service technician
- Wide, easy access from either side
- Ergonomic and intuitive control layout
- Generous storage compartments for shrink wrapping, pens, gloves, etc.
- Digital instrument display
- Padded, adjustable scoop seat provides additional comfort
- A cushioned platform isolates operatorfrom surface vibrations
- Excellent all-round visibility
- Powerful, high-torque 3 kW AC drive motor
- Moisture and dust-proof maintenance-free motor
- 13% gradeability performance fully laden
- Safe starting on gradients without rollback
- Responsive acceleration to maximum speed within 5 metres
- Effortless, proportional electric power steering with positive feedback
- Self centring steering for faster picking cycles
- Automatic speed reduction when cornering
